Poster LED screen supports remote content updates ,on multiple devices, whether it is an iPad, mobile phone, computer orlaptop, it can be easily operated. Supporting USB and WiFi connections, content publishing is more efficient and flexible.
Furthermore, the device is configured with a nine-layer protection system, encompassing anti-glare, anti-light dropout, anti-collision, scratch resistance, splash proofing, fingerprint resistance, anti-oxidation, anti-static, and dust proofing functions. This system effectively extends the device's service life while ensuring stable operation across diverse usage scenarios.The device features simple and efficient installation, supporting both mobile bracket mounting and wall-mounted installation.

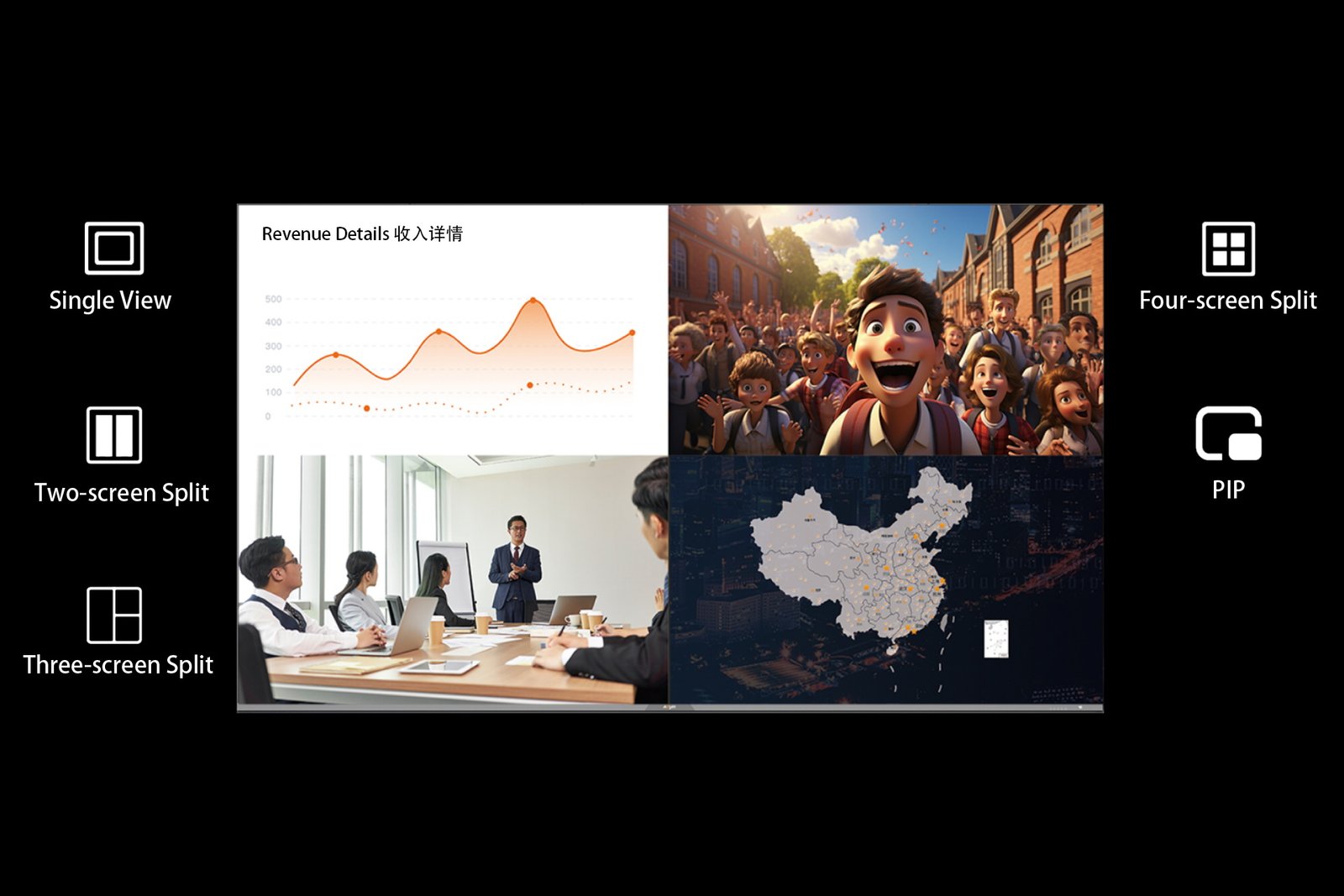

Split-Screen Synergy
Enables multi-view layouts for multitasking displays, enhancing flexibility and convenience in video conferencing/remote collaboration. Supports split-screen or PiP configurations, displaying up to 4 video sources simultaneously.Supports multiple devices including computers, smartphones, and tablets, as well as Windows, iOS, and Android platforms. Quick wireless screen mirroring with up to 4 split-screen independent sharing

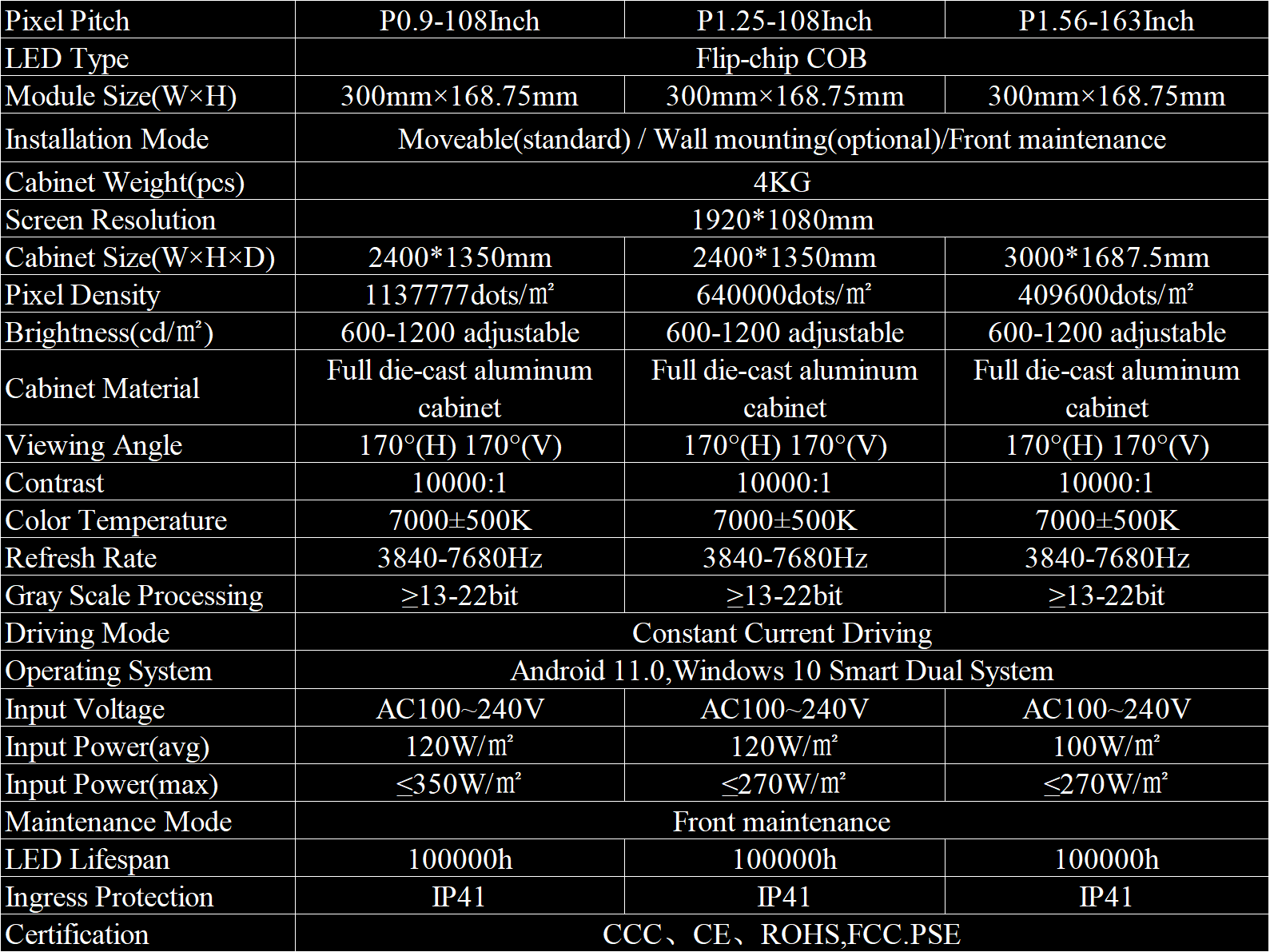

Specification
Why Unity All-in-One Replaces Your Projector and LCD Setup
Traditional conference room displays — projectors and large-format LCD panels — share three failure points: lamp degradation, backlight uniformity loss, and limited ambient light performance. Unity All-in-One eliminates all three.
Flip Chip COB encapsulation delivers 10,000:1 contrast and 600–1,200 cd/㎡ adjustable brightness with no backlight, no lamp, and no color shift over time. The 100,000-hour LED lifespan means a unit running 8 hours per day in a corporate environment operates for 34 years before reaching rated end-of-life — versus 5,000–20,000 hours for projector lamps or LCD backlights.
9-Layer Surface Protection System
Unity All-in-One is the only COB conference display with a factory-integrated 9-layer protection stack on the panel surface — purpose-built for shared meeting room environments where screens are touched, cleaned, and approached daily:
Anti-glare,Anti-light dropout ,Anti-collision,Scratch resistance,Splash proofing，Fingerprint resistance，Anti-oxidation，Anti-static,Dust proofing
No additional screen protector or housing required. The surface is cleanable with a standard damp cloth — the same maintenance standard as a whiteboard.
Android 11 + Windows 10 Smart Dual System
Unity All-in-One runs two independent operating systems on a single display, switching without rebooting:
- Android 11 — native app ecosystem for video conferencing (Zoom, Teams, Google Meet), digital signage, and browser-based content; no external device required for day-to-day meeting use
- Windows 10 — full desktop OS for presentations, creative production, and enterprise software; connects to your existing IT infrastructure via LAN or Wi-Fi
No source switching box. No HDMI matrix. One screen, two complete computing environments.
Installation: Two Modes, Zero Complexity

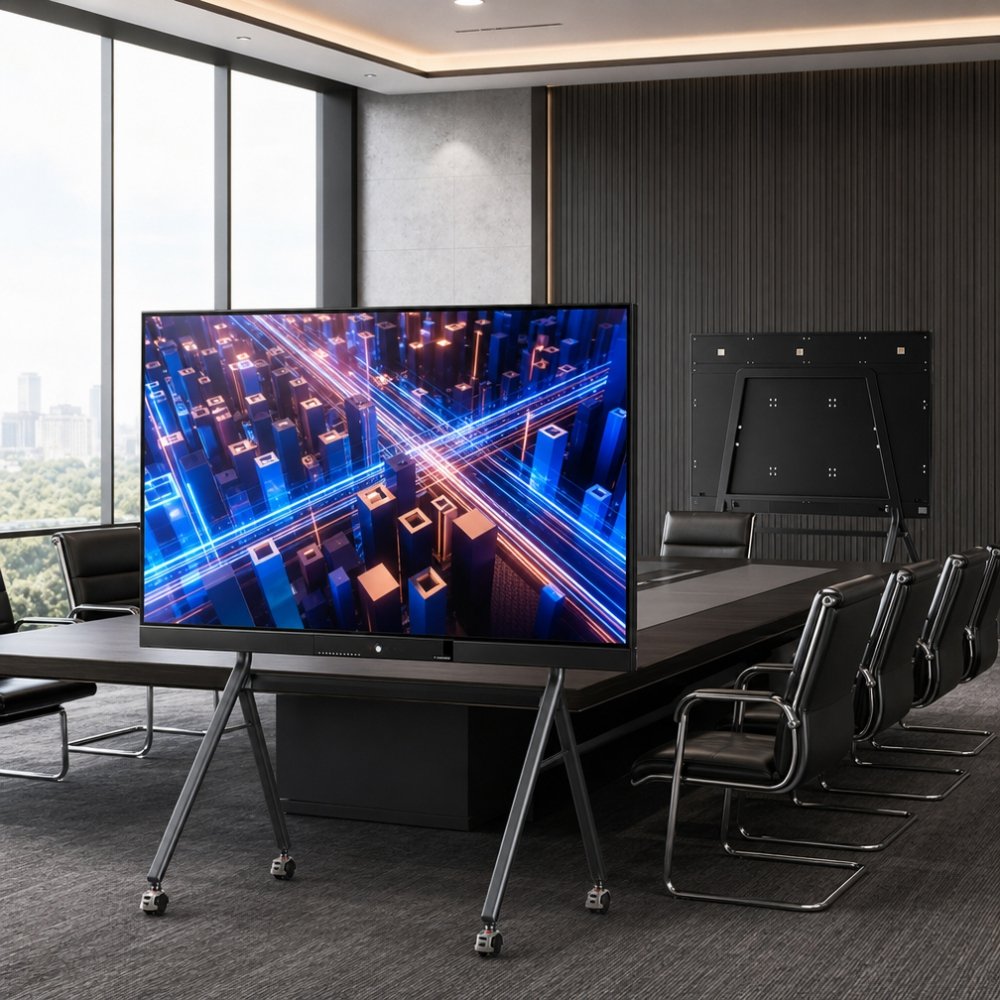

- Mobile bracket (standard) — wheeled floor stand for flexible room deployment; relocate between meeting rooms without tools
- Wall mounting (optional) — fixed installation flush to wall for dedicated conference rooms, boardrooms, and permanent showroom builds
Both modes use front-access maintenance — any module is serviceable from the front face without dismounting the unit or accessing wall cavities.
Ideal Deployment Scenarios
- Corporate Meeting Rooms — replaces projector + screen + PC setup with a single wheeled unit; 108" covers rooms seating 10–20 people
- Executive Boardrooms — 163" P1.5625 delivers presentation-grade resolution for C-suite and investor meeting environments
- Broadcast & TV Studios — 3,840–7,680 Hz refresh rate eliminates moiré and rolling shutter on professional broadcast cameras
- Multimedia Classrooms — touch-compatible via wireless mirroring, supports multi-student simultaneous screen sharing
- Hotel & Venue Showrooms — die-cast aluminum build and 9-layer surface protection withstand high-traffic daily use
Frequently Asked Questions
What is the difference between CU-P0.9 and CU-P1.25 at 108 inches?
Both models produce a 1920×1080 resolution at the same 2400×1350 mm cabinet size. CU-P0.9375 delivers 1,137,777 dots/㎡ versus 640,000 dots/㎡ for CU-P1.25 — nearly double the pixel density. For meeting rooms where participants sit within 1.5 m of the screen, CU-P0.9375 provides visibly sharper fine text rendering. For rooms with a minimum 2 m viewing distance, CU-P1.25 delivers equivalent perceived resolution at lower cost.
Does Unity All-in-One require an external PC or media player?
No. The built-in Android 11 system handles video conferencing, media playback, and browser-based content independently. Windows 10 is available for enterprise software requirements. An external PC can be connected via HDMI or USB-C if required, but is not necessary for standard meeting room operation.
Can 4 people share their screens wirelessly at the same time?
Yes. Unity All-in-One supports simultaneous wireless screen mirroring from up to 4 devices across Windows, iOS, and Android platforms. Each source displays in an independent split-screen quadrant or PiP window. No third-party casting hub or software license is required.
What does the 9-layer protection system protect against in a meeting room?
The 9-layer stack addresses the most common meeting room damage modes: fingerprints and smudges (fingerprint resistance + anti-glare), accidental contact by markers or pointer tools (anti-collision + scratch resistance), cleaning fluid overspray (splash proofing), and long-term surface oxidation from air exposure (anti-oxidation + anti-static + dust proofing). The surface is rated for standard damp-cloth cleaning without specialist products.
What certifications does Unity All-in-One carry for global procurement?
Unity All-in-One holds CCC, CE, RoHS, FCC, and PSE — covering China, the EU, North America, and Japan in standard configuration. This satisfies procurement requirements for multinational corporate rollouts and government-tendered education deployments without additional certification lead time.
