Why Choose COB Rental screen

COB rental LED displays adopt epoxy-encapsulated chip-on-board packaging with no exposed lamp beads, making them highly resistant to dust, moisture, and impact—drastically reducing dead pixels caused by repeated transport, stacking, and rigging. Compared to traditional SMD rental panels, COB offers seamless, pixel-free images with higher contrast and broadcast-grade refresh rates, runs cooler with better heat dissipation, consumes less power, and comes in lighter cabinets with full front-service access for fast module replacement. These combined benefits mean faster setup/teardown, less on-site downtime, and longer product lifespan—ideal for high-frequency, fine-pitch, and premium event rental fleets.

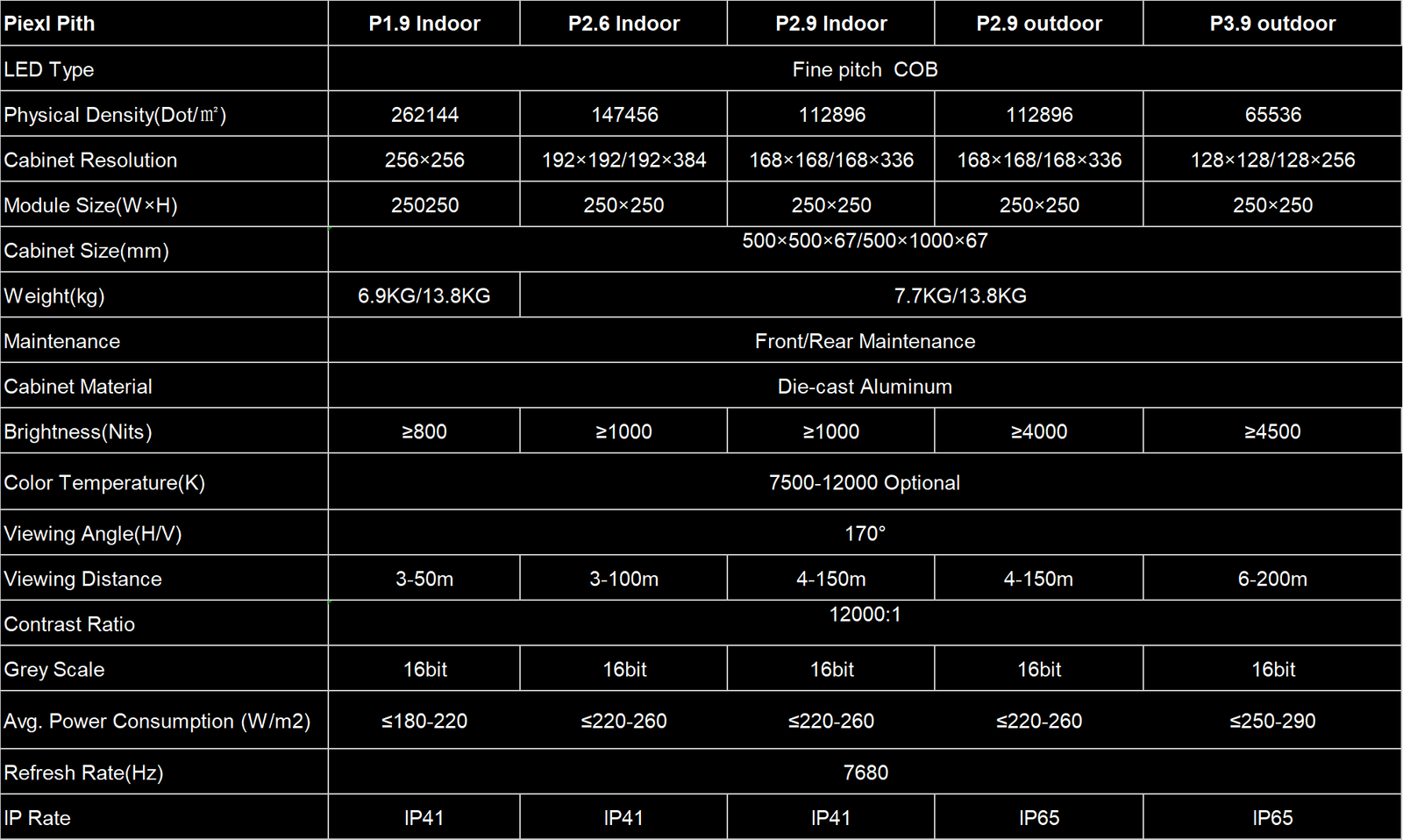

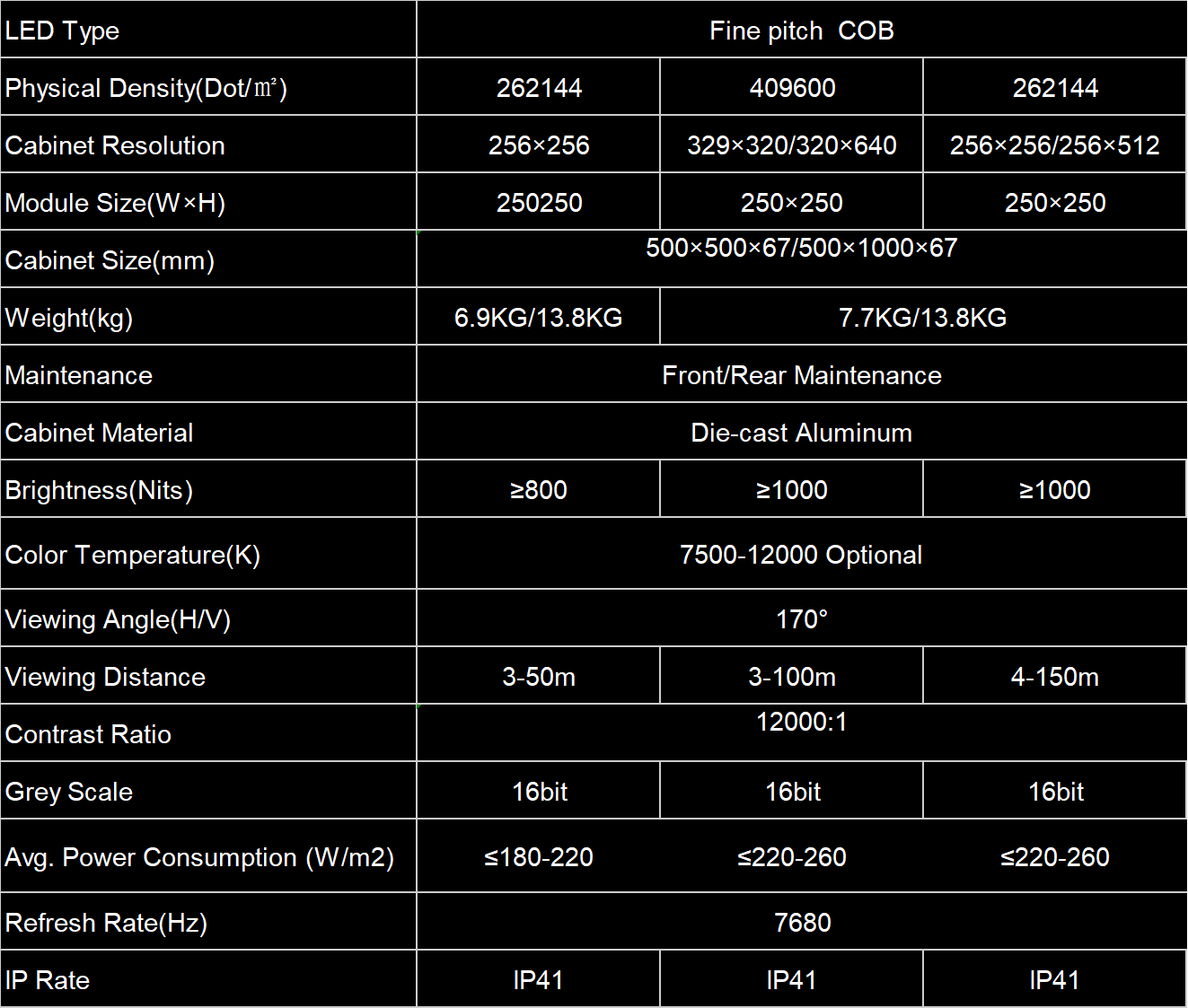

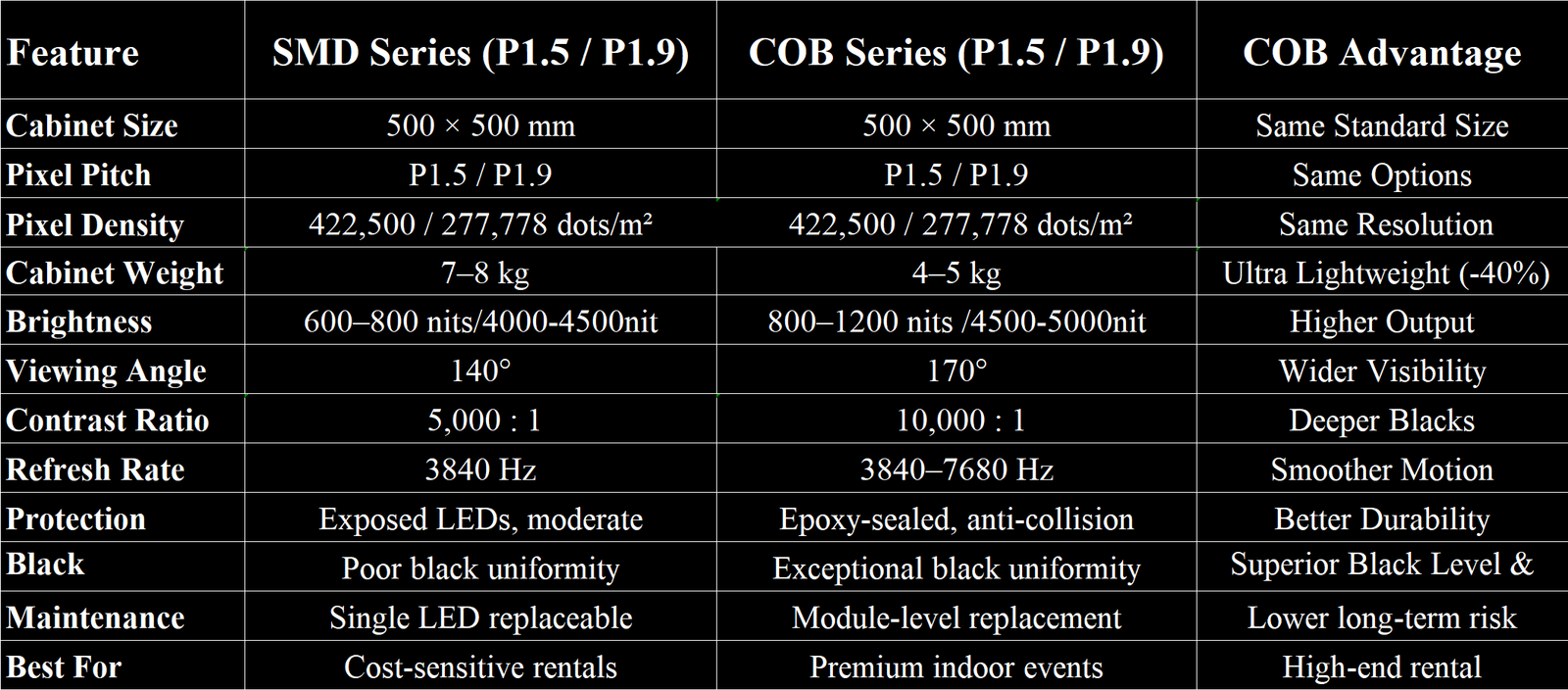

                                                                                           Spefication

Advantages of COB LED Rental Displays

1. Higher Durability & Impact Resistance​

COB LEDs are fully encapsulated with epoxy resin, eliminating exposed pins and fragile solder joints. This makes COB panels highly resistant to dust, moisture, and physical impact from frequent transport and rigging—unlike SMD, where loose or knocked lamp beads often cause dead pixels.

2. Front Service & Faster On-Site Repair​

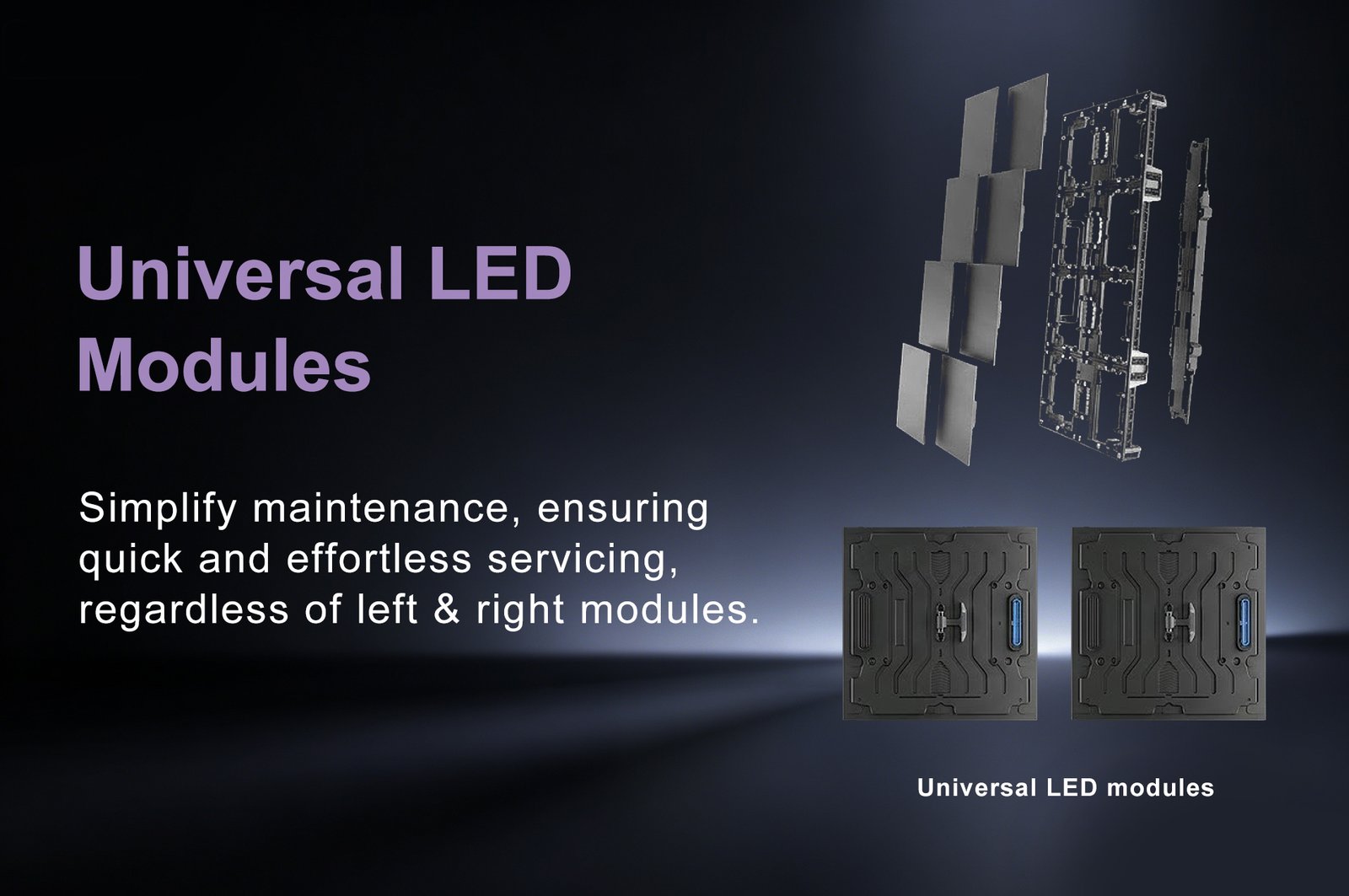

Most COB rental cabinets support full front access. Magnetic modules can be removed and replaced from the front in seconds, with no rear clearance required—whereas SMD panels often require rear access or individual lamp repair.

3. Superior Heat Dissipation & Longer Lifespan​

LED chips are directly bonded to the substrate, allowing better thermal transfer than SMD’s soldered leads. COB runs cooler, maintains more stable brightness/color over time, and experiences slower lumen decay.

4. Better Close-View Image Quality & Higher Contrast​

The resin-encapsulated surface removes the visible "pixel grid" seen on SMD. COB delivers deeper blacks, higher contrast ratios, and smoother uniformity—especially important for fine-pitch, short viewing distances.

5. Lighter Cabinet & Faster Installation​

COB cabinets are typically 30–40% lighter than equivalent SMD cabinets and use quick-lock systems, reducing rigging points and labor time.

6. Lower Power Consumption​

At the same brightness level, COB generally consumes 15–30% less power than SMD, reducing generator and distribution requirements on site.

  Who Uses Onyx COB Rental  Series

• Concert & Live Entertainment — touring stage backdrops, IMAG  screens,immersive curved video surfaces
• Corporate Events & Conferences — main stage screens, breakout room displays, product launch backdrops
• Trade Shows & Exhibitions — booth feature walls, curved brand installations, three-dimensional display structures
• Sports & Cultural Events — venue perimeter boards, prize ceremony backdrops, fan zone screens

                                                  Frequently Asked Questions

What makes Vanish Series arc lock different from standard rental cabinet hinges? Standard rental cabinet curved connectors use pin-and-slot hinges that allow up to ±0.5–1 mm of panel drift under load or temperature change. Vanish Series uses a high-precision machined arc lock that holds alignment to ±0.1 mm across the full curved array — eliminating the visible seam variance that appears in wide-angle camera shots during live events.

Can I mix flat and curved configurations in the same show using the same cabinet stock? Yes. Vanish Series cabinets reconfigure between flat, curve, and cube modes using the same hardware. Your warehouse holds one SKU; your crew assembles to the show requirement on-site. No separate curved-only cabinet inventory required.

Does Vanish Series support both indoor and outdoor rental deployments?

Confirm IP rating from spec sheet.] The cabinet's waterproofing rating determines outdoor suitability. CE, RoHS, and FCC certifications are standard across all Vanish Series units for international rental operation.

What is the minimum crew size and setup time for a Vanish Series build?

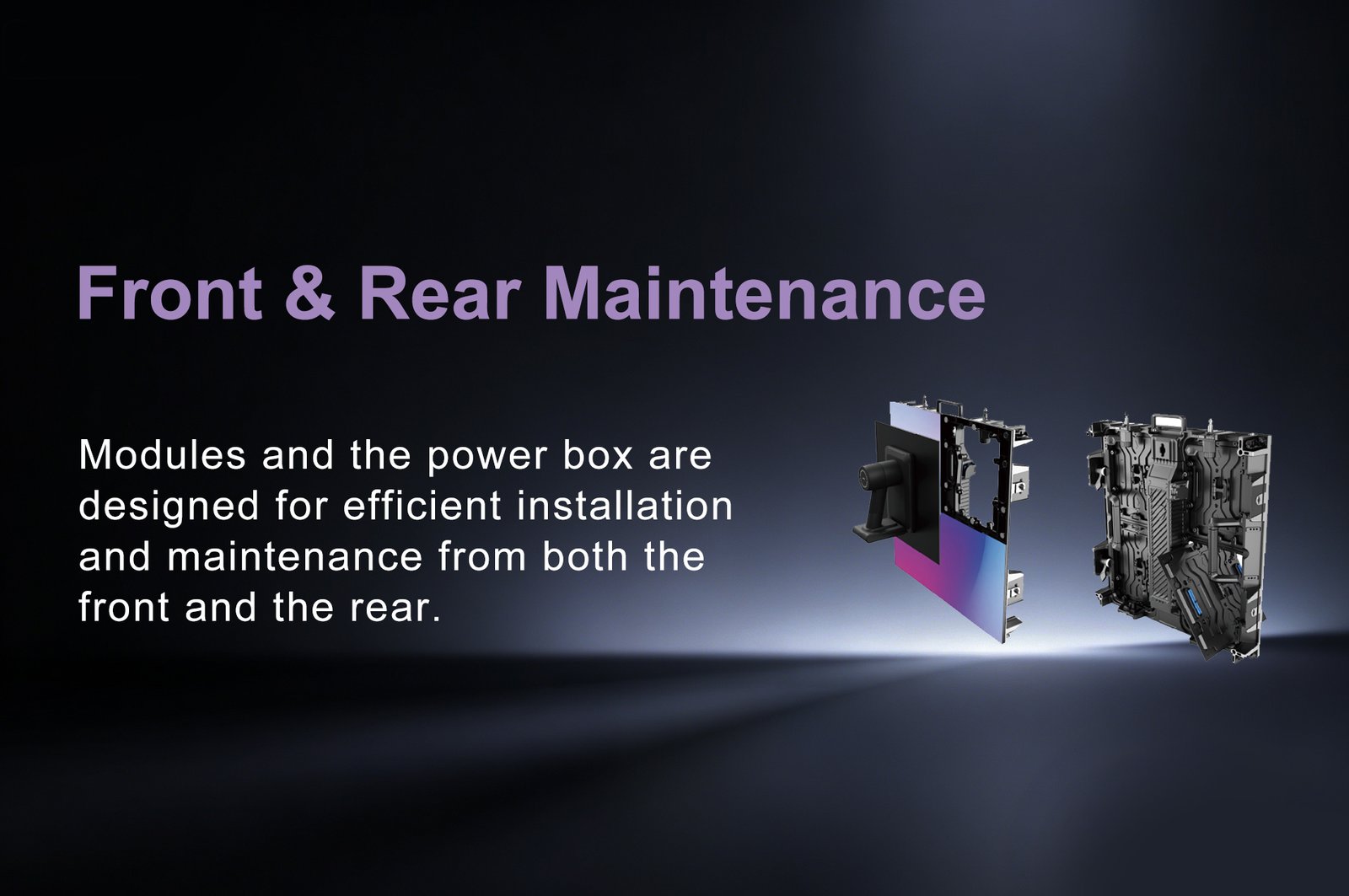

Fast-lock modules allow a two-person crew to assemble a standard 20 ㎡ screen in approximately [confirm setup time]. Front and rear module access means a single technician handles all in-show maintenance without requiring a second person on the opposite side of the structure.

What after-sales support does Choco provide for international rental companies?

Choco Technology supplies full CE, RoHS, and FCC documentation with every shipment. Spare module stock, power supply inventory, and processing card replacements are available via FOB Shenzhen with typical lead times of [15 working days from deposit]. Regional certification support for UAE, Korea, Brazil, and Japan markets is available on request.

Get a Vanish Series rental quote → chocodisplay.com

Share your event screen size, configuration type (flat / curve / cube), and deployment region — we return a full FOB Shenzhen spec sheet and pricing within 24 hours.
