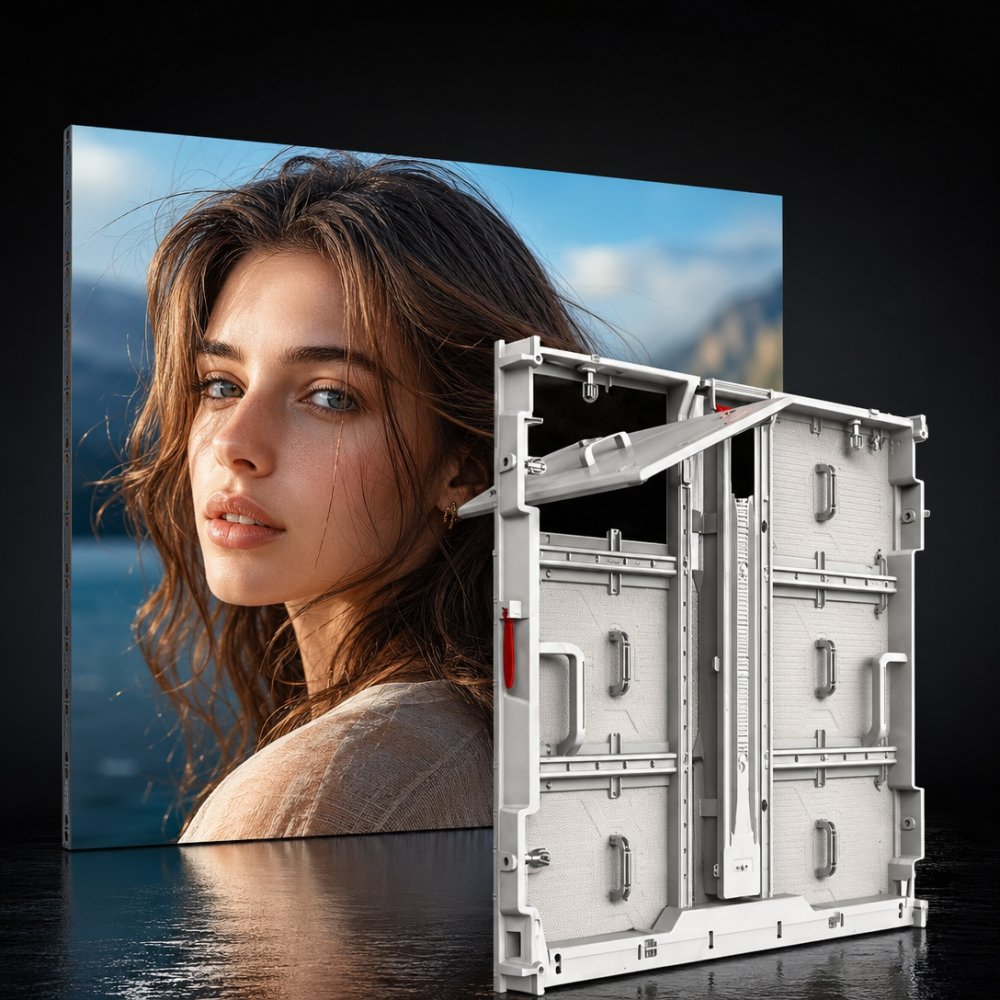

High Quality Outdoor LED Display

The Urban Dooh Series Aluminum Outdoor LED Display is the ideal solution for outdoor fixed installations, combining durability and advanced design features. Crafted with die-casting cabinets and aluminum modules, it excels in heat dissipation, ensuring optimal performance in various outdoor conditions.

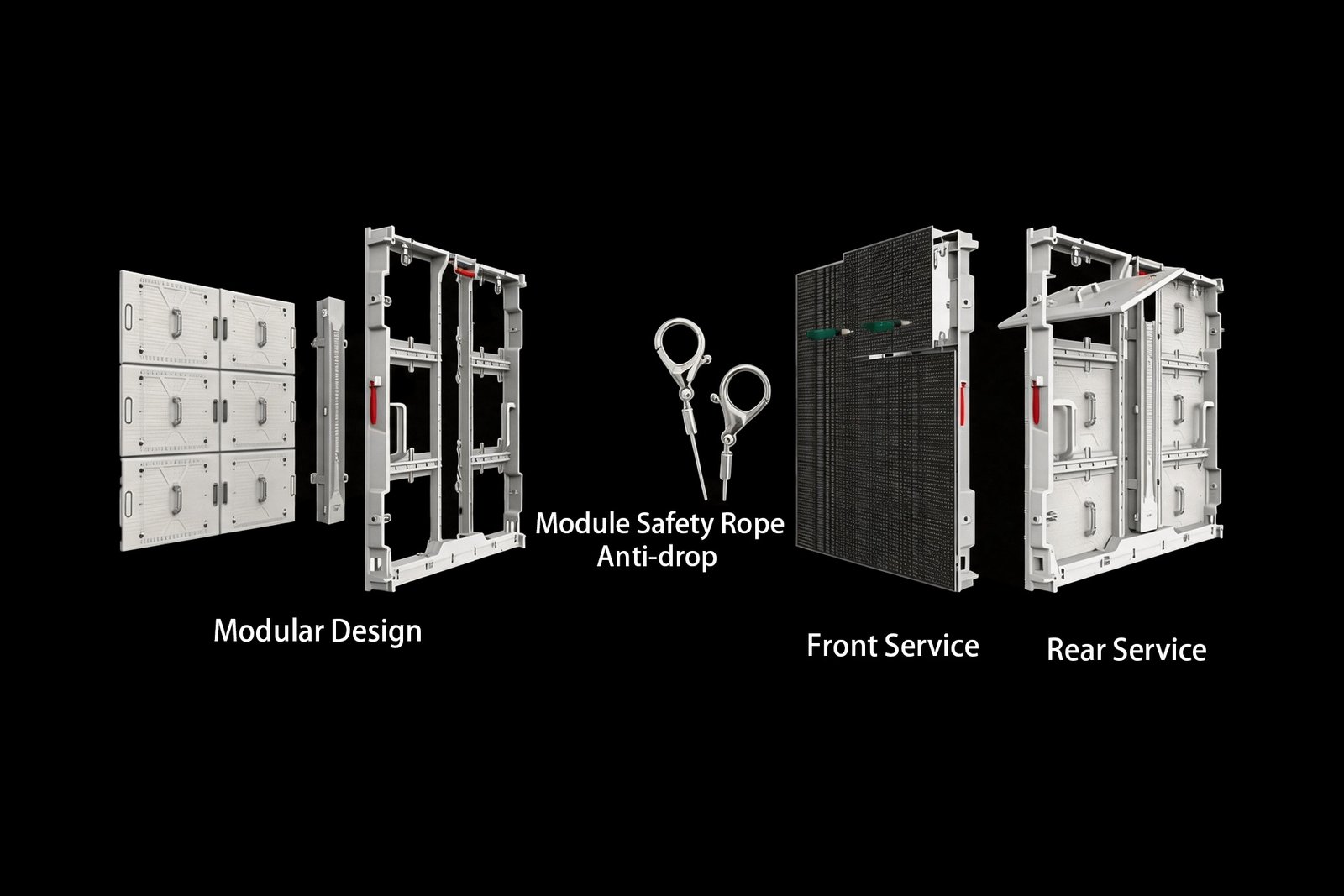

                                                         Convenient Front-Rear Service

It supports front-rear service. Module adopts fast lock to have more convenient installation and dismantlement.

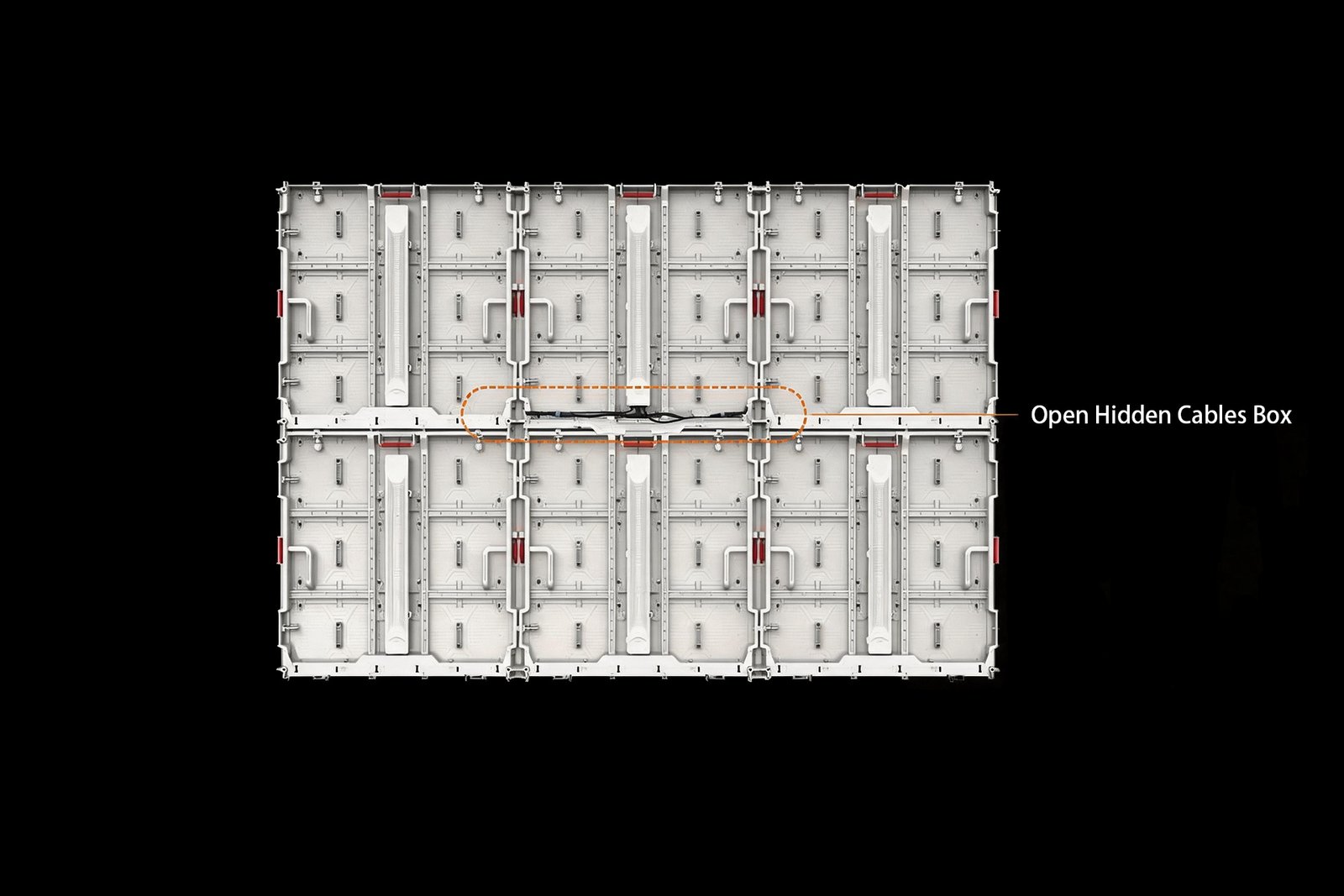

                                                              Concealed & Waterproof Cable Design

The Urban Dooh Series features hidden power and signal wiring with aviation connectors and built-in tail caps, offering a neater appearance, improved waterproofing, and faster installation.

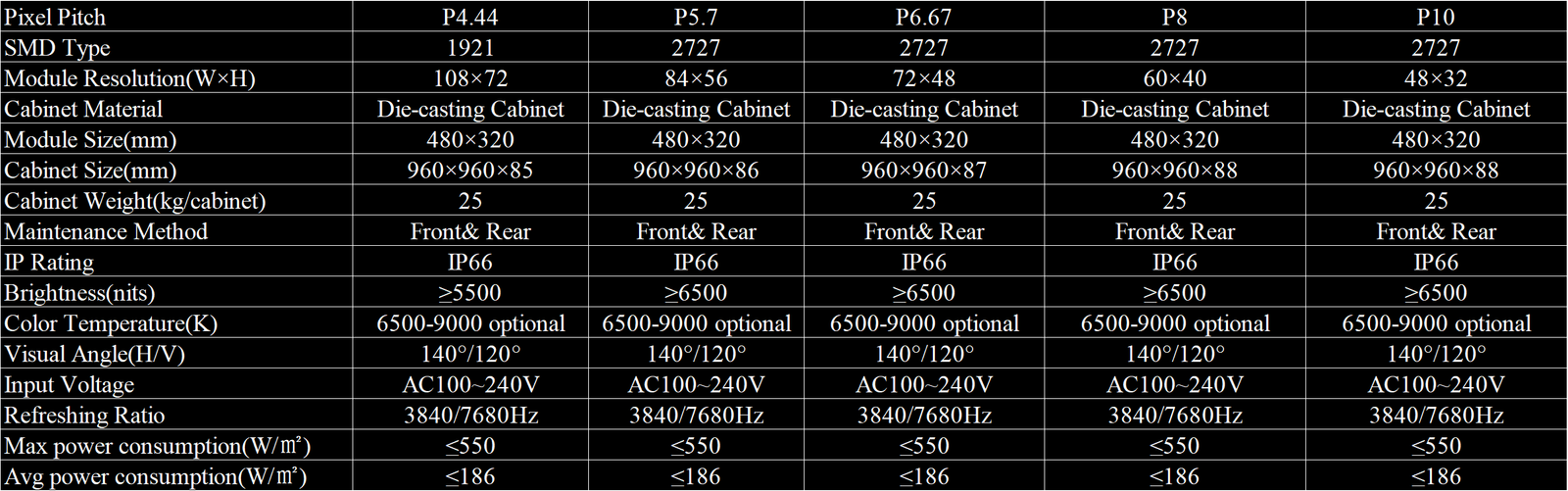

                                                 Specification

                                                  Frequently Asked Questions

What makes die-casting aluminum better than standard steel cabinets for outdoor LED?

Die-casting aluminum achieves a tighter dimensional tolerance, which means cabinet edges seal more precisely when tiled — reducing moisture ingress points across large screen arrays. Aluminum also conducts heat 3–5× more efficiently than steel, keeping LED junction temperatures lower and extending operational lifespan in high-ambient-temperature markets such as the Middle East, Southeast Asia, and sub-Saharan Africa.

Does the Urban Dooh Series support front-only maintenance for wall-mounted installs?

Yes. The fast-lock module system allows full front-access servicing, meaning technicians can replace any module from the front face without requiring rear wall access or full cabinet removal. This is critical for billboard installations mounted against solid walls or building façades.

What waterproofing standard does the Urban Dooh Series meet?

The Urban Dooh Series meets IP65, providing full dust-tight protection and resistance to water jets from any direction. The concealed aviation connector cable system provides an additional layer of ingress protection beyond the cabinet-level IP rating.

What pixel pitch options are available for different viewing distances?

Pixel pitch selection depends on your minimum viewer distance. As a baseline: P4 covers distances from 8–16 m (roadside retail, transit), P6 from 12–25 m (standard highway billboard), and P8–P10 from 16–35 m+ (motorway, large-format façade). Contact us with your installation dimensions and viewing distance for a specific pitch recommendation.

What certifications are available for international DOOH projects?

Standard supply includes CE, RoHS, and FCC. Regional certifications for UAE (ESMA), Brazil (ANATEL/INMETRO), Korea (KC), and Japan (PSE/VCCI) are available on request — essential for DOOH operators running multi-country outdoor networks.
